6 mesh brass wire mesh

6 mesh plain weave brass wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 6 mesh plain weave brass wire mesh

6 mesh plain weave brass wire mesh including 6 wires and openings of 1 inch Using 0.4-0.7mm diameter wire, by plain weaving, woven 6 mesh opening for 3.5-3.8mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

C28000 (CuZn37), C27000 (CuZn35) ,C26000 (CuZn30)

Grade	Characteristics
C26000 Brass	Offers the highest ductility and malleability among the standard brass alloys, making it exceptionally easy to weave into precise, ultra-fine wire mesh and high-density wire cloth without fracturing. It features excellent electrical and thermal conductivity, along with reliable corrosion resistance.
C27000 Brass	Features an optimal balance of tensile strength and flexibility. While slightly stiffer than C26000, it remains highly fabricable for standard weaving processes. It provides good resistance to atmospheric corrosion, fresh water, and mild chemicals, holding its structure well under moderate mechanical stress.
C28000 Brass	A much more rigid and high-strength alloy compared to C26000 and C27000. Because of its higher zinc content, it is less ductile and harder to weave into ultra-fine mesh, but it excels in rigidity and wear resistance.

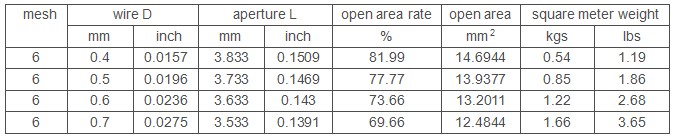

6 mesh plain weave brass wire mesh technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

6 mesh plain weave brass wire mesh application

Industrial fluid filtration: oil filter, oil strainer mesh, coarse fuel intake screen , steam engine filter mesh ,oil pump suction strainers,

Laboratory particle analysis: test sieve,coarse grading screens, laboratory soil and grain classification sieve

Architectural & interior design: decorative mesh,infill panels,decorative cabinetry wire grille inserts, elevator cab mesh cladding,room dividers ,luxury interior woven brass space dividers, room partition curtains

Building ventilation and exterior drainage: gutter guards,architectural gutter mesh inserts, air vents ,vent screens, vent grilles.

6 mesh plain weave brass wire mesh packing

Brass wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
