6 mesh red copper mesh

6 mesh plain weave red copper wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

6 mesh plain weave red copper wire mesh including 6 wires and openings of 1 inch Using 0.4-0.7mm diameter wire, by plain weaving, woven 6 mesh opening for 3.5-3.8mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

C10200, C11000

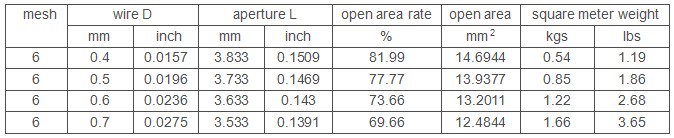

Technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

Application

u Air Vents

u Drains

u Chimney caps

6 mesh plain weave red copper wire mesh packing

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
