80 mesh red copper wire mesh

80 mesh plain weave red copper wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 80 mesh red copper wire mesh

80 mesh plain weave red copper wire mesh including 80 wires and openings of 1 inch Using 0.08-0.12mm diameter wire, by plain weaving, woven 80 mesh opening for 0.19-0.23mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use.This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

C11000, C10200 ,C10100

Grade	Characteristics
C11000 Copper	C11000 the purity at 99.9%,it is the widely used grade for commercial copper wire mesh. It possesses exceptional ductility and malleability, allowing it to be easily woven into ultra-fine mesh or high-density wire cloth.
C10100 / C10200 Copper	C10100 purity of 99.99%, C10200 is slightly lower purity at 99.95%.This mesh has zero oxygen and no impurities.It is softer and more flexible than C11000. The increased purity offers more reliable electrical performance over a wide range of conditions. It can weave into very tight or complex mesh patterns without the wires breaking.

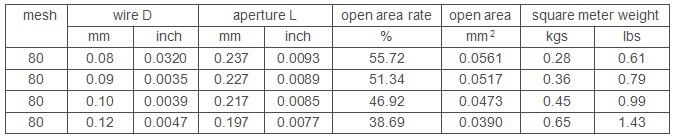

80 mesh red copper wire mesh technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

80 mesh red copper wire mesh application

Fiber spinning mesh:polymer melt filtration screens, synthetic yarn spinning pack mesh, spinneret assembly filtration discs, multi-layer extruder screen

EMI/RFI shielding mesh : EMI shielding mesh, RF interference suppression grids, Faraday cage cloth, electronic cabinet ventilation wave shields, grounding wire fabrics.

Filters : filter elements, multi-layer filter cartridges,fine particle traps

Jewelry: Artisan metallic textile mesh,handmade jewelry filigree backings, metal mesh jewelry casting components, wire cloth sculpture layers.

Decorative Grills: cabinetry mesh,ventilation grille liners,architectural lighting mesh diffusers,interior decoration in building and construction industries

80 mesh plain weave red copper wire mesh packing

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
