100 mesh red copper wire mesh

100 mesh plain weave red copper wire mesh

Standard

GB/T 5330.1-2000,  GB/T 19628.2-2005

Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description of 100 mesh red copper wire mesh

100 mesh plain weave red copper wire mesh including 100 wires and openings of 1 inch Using 0.07-0.10mm diameter wire, by plain weaving, woven 100 mesh opening for 0.15-0.18mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

C11000, C10200 ,C10100

Grade	Characteristics
C11000 Copper	C11000 the purity at 99.9%,it is the widely used grade for commercial copper wire mesh. It possesses exceptional ductility and malleability, allowing it to be easily woven into ultra-fine mesh or high-density wire cloth.
C10100 / C10200 Copper	C10100 purity of 99.99%, C10200 is slightly lower purity at 99.95%.This mesh has zero oxygen and no impurities.It is softer and more flexible than C11000. The increased purity offers more reliable electrical performance over a wide range of conditions. It can weave into very tight or complex mesh patterns without the wires breaking.

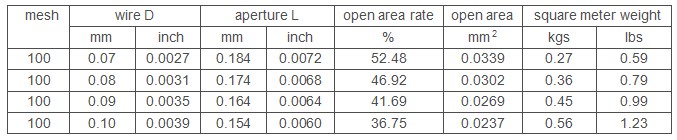

100 mesh red copper wire mesh technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

100 mesh red copper wire mesh application

Decorative Grills: cabinetry mesh,ventilation grille liners,architectural lighting mesh diffusers,interior decoration in building and construction industries

EMI & RFI Shielding: military-grade RF shielding enclosure ventilation panels,MRI medical imaging room attenuation wall linings,signal isolation screens,aerospace instrument compartment tempest shielding,HVAC as well as numerous electrical based applications

Filters : pipeline filter packs,micro-particulate strainer liners,oil filters, filter discs, extruder screen

Capillary wicking material of heat pipes: heat pipe wicks, cryogenic heat exchangers, cryocoolers, cold heads, and stirling engines.

Laboratory & filtration:aboratory-grade micro-filtration,precision particle screening micro-aperture filter media ,fine powder classification

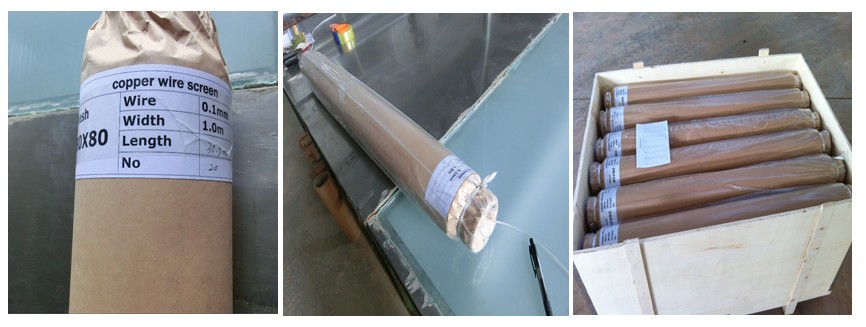

100 mesh plain weave red copper wire mesh packing

copper wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
