6 mesh phosphor bronze

6 mesh plain weave phosphor bronze wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

6 mesh plain weave phosphor bronze wire mesh including 6 wires and openings of 1 inch Using 0.4-0.7mm diameter wire, by plain weaving, woven 6 mesh opening for 3.5-3.8mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

CuSn6

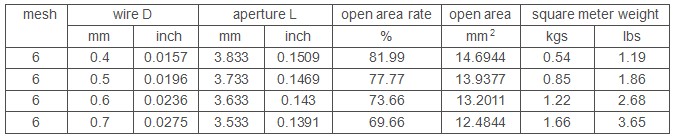

Technical parameter

roll width: 0.914m, 1.0m, 1.22m

roll length: 30m

Application

u Air vents.

u Decorative grills

u Filters

6 mesh plain weave phosphor bronze wire mesh packing

Phosphor bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.
