D220mm filter tube

Hot Products
Related Knowledge
Introduction

Diameter:  220mm
Length:  10mm-1000mm
Metal:  Stainless steel,steel,copper,aluminum
Material:  Woven wire mesh,expanded metal,perforated metal
Layer:  single,double,three
Form:  welding,sintering
Application:  oil, gas, water treatment, automobile

Add Inquiry
Description

D220mm Filter Tube


Standard

Anping Web Wire Mesh Co.Ltd. Filter Tube Process and Technical Parameters


Brief Description of D220mm Filter Tube

D220mm filter tube is made of mesh by CNC punch pressing or cutting into pieces , after combination ,welding or sintering , is a filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and CNC punching equipment, can produce a variety of specifications of the single , double and multiple filter tube , uniform mesh , mesh solid , pressure is strong , renewable ( repeatedly) etc., it is widely used in oil, gas, water treatment and other fields .

D220mm Filter Tube Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel : Q195, Q215, Q235

Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5, CuSn6

Aluminum: 1050, 1060, 1100, 5052, 5056

Material

Key Characteristics

Stainless Steel 304

Excellent general corrosion resistance and strength; highly cost-effective and the most widely used wire mesh for standard filtration.

Stainless Steel 304L

Low-carbon 304; prevents intergranular corrosion after welding; ideal for multi-layer sintered or welded filter tubes.

Stainless Steel 316

Contains molybdenum for superior resistance to chlorides, pitting, and acids; preferred for chemical and marine filtration.

Stainless Steel 316L

Low-carbon 316; eliminates weld decay; offers maximum corrosion resistance for critical welded filter elements in harsh environments.

Brass

Copper-zinc alloy; offers good spark resistance, easy formability, and adequate filtration for low-pressure oil or water systems.

Copper

Exceptional thermal/electrical conductivity; highly ductile for customized mesh tubes

Steel (Carbon Steel)

High structural strength and economy; high pressure resistance,

Aluminum

Extremely lightweight with good natural corrosion resistance; non-magnetic


D220mm Filter Tube Type

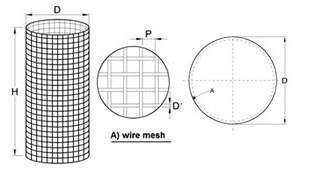

Woven wire mesh tube


Perforated metal mesh tube

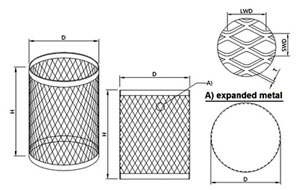

Expanded metal mesh tube



D220mm Filter Tube Application

Oil Filtration: crude oil basket filter elements ,marine strainer baskets ,petrochemical refinery stream filters

Water Filtration :self-cleaning backwash screen filter elements,seawater desalination plant intake screens,municipal waterworks raw water intake screen tubes,power plant water strainers,wastewater treatment clarifier strainers

Gas Filtration :gas pipeline filter elements,gas compressor coalescing elements,air separation intake filter, industrial pre-treatment pipeline cartridges

Support: structural inner support ,multi-bag filter vessel support baskets,dust collector tube


Wire Mesh Filter Tube Packing

Filter tube should be packed firmly and securely. When packing, filter tube are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
