D250mm filter tube

D250mm Filter Tube

Standard

Anping Web Wire Mesh Co.Ltd. Filter Tube Process and Technical Parameters

Brief Description of D250mm Filter Tube

D250mm filter tube is made of mesh by CNC punch pressing or cutting into pieces , after combination ,welding or sintering , is a filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and CNC punching equipment, can produce a variety of specifications of the single , double and multiple filter tube , uniform mesh , mesh solid , pressure is strong , renewable ( repeatedly) etc., it is widely used in oil, gas, water treatment and other fields .

D250mm Filter Tube Material

Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430

Steel : Q195, Q215, Q235

Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5, CuSn6

Aluminum: 1050, 1060, 1100, 5052, 5056

Material	Key Characteristics
Stainless Steel 304	Excellent general corrosion resistance and strength; highly cost-effective and the most widely used wire mesh for standard filtration.
Stainless Steel 304L	Low-carbon 304; prevents intergranular corrosion after welding; ideal for multi-layer sintered or welded filter tubes.
Stainless Steel 316	Contains molybdenum for superior resistance to chlorides, pitting, and acids; preferred for chemical and marine filtration.
Stainless Steel 316L	Low-carbon 316; eliminates weld decay; offers maximum corrosion resistance for critical welded filter elements in harsh environments.
Brass	Copper-zinc alloy; offers good spark resistance, easy formability, and adequate filtration for low-pressure oil or water systems.
Copper	Exceptional thermal/electrical conductivity; highly ductile for customized mesh tubes
Steel (Carbon Steel)	High structural strength and economy; high pressure resistance,
Aluminum	Extremely lightweight with good natural corrosion resistance; non-magnetic

D250mm Filter Tube Type

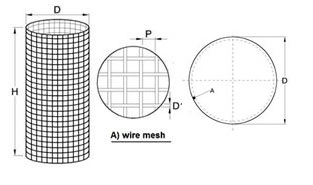

Woven wire mesh tube

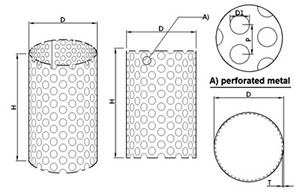

Perforated metal mesh tube

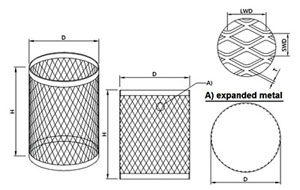

Expanded metal mesh tube

D250mm Filter Tube Application

Oil Filtration:crude oil basket strainers ,refinery distillation coarse filter elements,marine strainer baskets,hydraulic suction filter

Water Filtration: seawater desalination intake screen cylinders,municipal waterworks raw intake t-intake / drum screen elements,automatic backwash system screens,industrial wastewater strainers

Gas Filtration: gas filter-separator elements,gas compressor coalescing elements,air separation intake air filter ,petrochemical vessel basket liners,natural gas particulate filters

Support: structural support cores for mining & ore slurries,multi-bag filter housing baskets,pulp paper processing slotted screen

Wire Mesh Filter Tube Packing

Filter tube should be packed firmly and securely. When packing, filter tube are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
