9mm flat wedge wire screen

Hot Products
Related Knowledge
Introduction

Slot Size:  9mm
Material:  304 304L 316 316L 321
Profile Wire:  2.2x3.5,2.2x4.5,2.8x5.0,3.1x6,2.8x6.5,3.4x7.5mm etc
Support Rod Type:  triangle wire,round rod,flat bar,wedge wire
Panel Size:  500x500mm-3000x3000mm,500x1000mm-2000x3000mm
Application:  energy exploration,gas processing,mining and minerals processing, food processing, paper making industry.

Add Inquiry
Description

9mm slot flat wedge wire screen


Standard

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Technical Parameters.


Brief description

9mm slot flat wedge wire screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and edge welding. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration. 9mm slot flat wedge wire screen is widely used for energy exploration,gas processing,mining and minerals processing, food processing, paper making industry.

Material

Stainless Steel:304 304L 316 316L 321

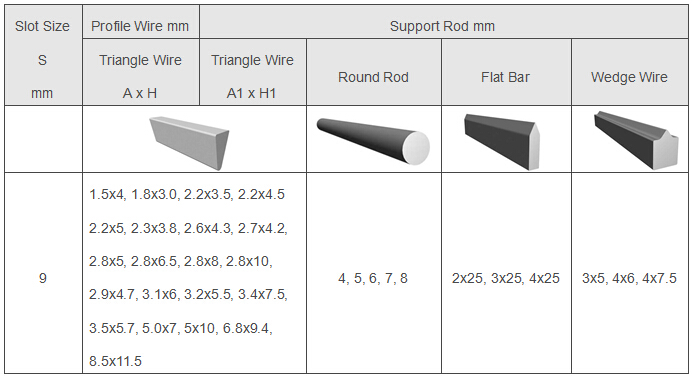

9mm flat wedge wire screen technical parameter

u For flat wedge wire screen, profile wire type is triangle wire in common.Support rod includes triangle wire,

       round rod,flat bar,wedge wire.

u Common size of flat wedge wire screen: 500x500mm-3000x3000mm,500x1000mm-2000x3000mm

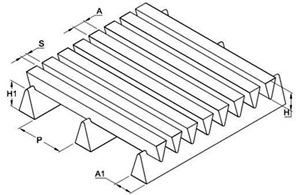

Note

Slot Size (S): The distance between each profile wire.

Profile Wire: Triangle wire is common type.

Support Rod: Triangle wire is common type. It can also be round rod, flat bar, wedge wire.

Support Rod Distance (P): The distance between each support rod.


Application

u energy exploration

u gas processing

u mining and minerals processing

u food processing

u paper making industry.


Packing

Flat wedge wire screen should be packed firmly and securely. When packing, flat wedge wire screen appears in panels. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
