20 mesh nickel wire mesh

20 mesh plain weave nickel wire mesh

Standard

u GB/T 5330.1-2000,  GB/T 19628.2-2005

u Anping Web Wire Mesh Co.,LTD Plain Weave Process and Technical Parameter

Brief description

20 mesh plain weave nickel wire mesh including 20 wires and openings of 1 inch Using 0.15-0.50mm diameter wire, by plain weaving, woven 20 mesh opening for 0.7-1.1mm solid particles , it can also be used as a liquid, gas filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material

u Pure nickel: N2 N4 N6

u Nichrome: Cr20Ni80

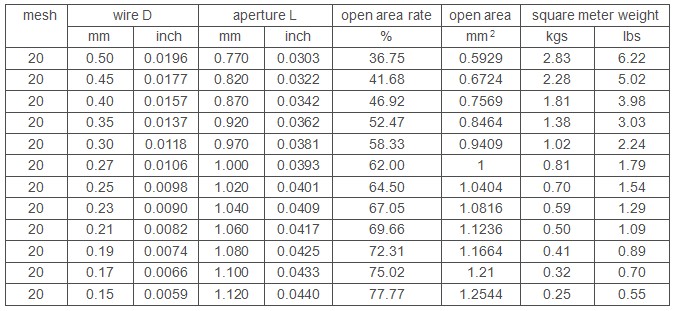

Technical parameter

roll width: 1.0-1.5m

roll length: 30m

Application

u Liquid/gas filters

u EMI/RFI shielding mesh

u Fuel cells/electrodes

20 mesh plain weave nickel wire mesh packing

Nickel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film,

outside wooden cases or wooden pallet.
