Shape: slot hole
Hole Size: 2x12.5mm
Pitch: 4x18mm,5x18mm
Thickness: 0.8mm-1.2mm
Material: stainless steel,steel,copper,aluminum,nickel
Angle Patterns: Z staggered
Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Application: audio,air vents,decoration,filtering field
2x12.5mm slot hole perforated metal mesh
Standard
u GB/T 12620-2008
u Anping Web Wire Mesh Co.Ltd. Perforated Metal Mesh Process and Technical Parameters
Brief description
2x12.5mm slot hole perforated metal mesh is made of metal plate match 2x12.5mm aperture punching die, by CNC punch pressing, cutting, slicing, leveling, grease, deburring, and surface treatment processes of roll or sheet mesh. We have 14 complete production lines and advanced numerical equipment, it will be combinations of different material ,pitch and opening rate,to produce more specifications mesh,it is widely used in audio, air vents,decoration, filtering fields.
Material
u Stainless steel: 201, 202, 304, 304L, 316, 316L, 321, 430
u Steel : Q195, Q215, Q235
u Copper: C10200, C11000, CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5
u Aluminum: 1050, 5052, 5056
Surface Treatment
u Stainless steel: polished finish
u Steel: galvanization(electroplating,hot-dip), PVC coated
u Aluminum: anodizing, spray paint, powder coated

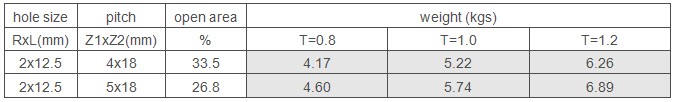

Technical parameter
Slot hole round ends Z staggered
Size:1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m
Note:
u L,R stand for opening size
u Z1,Z2 stand for center to center distance
u T stands for mesh thickness
u Open area % is the total area of the holes divided by the total area of the sheet and is expressed
as a percent.
u The weight is calculated according to stainless steel,stainless steel density is 7.93g/cm3,
copper or nickel density is 8.90g/cm3,aluminum density is 2.73g/cm3
Application
u Speaker grilles
u Decorative
u Filter
u Air vents
u Test Sieve
u Furniture
u Sound absorption
Packing
