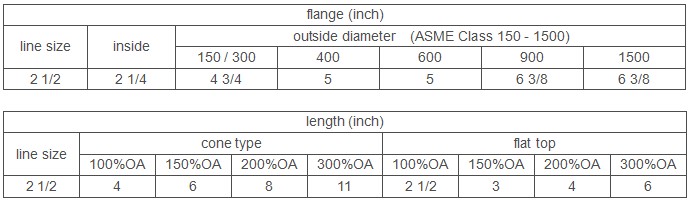

Line Size: DN2 1/2 inch
Inside Dia: 2 1/4inch
Outside Dia: 4 3/4inch,5inch,6 3/8inch
Type: cone,flat top
Length: 2 1/2inch-11inch
Material: Stainless steel mesh,steel mesh,expanded metal,perforated metal
Handle: none,1
Application: Pipe filtration
DN2 1/2 inch conical strainer
Standard
u Anping Web Wire Mesh Co.Ltd. Conical Strainer Process and Technical Parameters
Brief description
DN2 1/2 inch conical strainer is made of metal mesh by CNC punch pressing or cutting into sector pieces , after combination , welding flanges and handle, is a coarse filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and many models, can produce a variety of specifications of the conical strainer, uniform mesh , large filtration area , low resistance , renewable ( repeatedly) etc., it is widely used in oil, gas , water treatment and other fields .
Material
u Stainless steel mesh: 201, 202, 304, 304L, 316, 316L, 321, 430
u Steel mesh: Q195, Q235, Q275
u Expanded metal: standard diamond hole, flatten diamond hole
u Perforated metal : round hole
Type

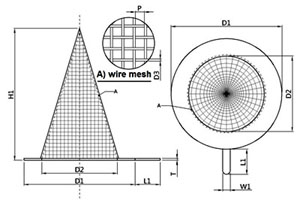

Cone type

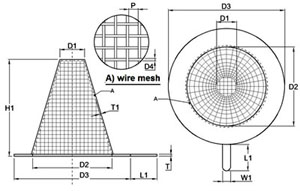

Flat top type
Note:
u D1,D2,D3 stand for diameter
u L1 stands for length
u T stands for thickness
u W1 stands for width
u OA stands for open area
Application
u Oil filters
u Water filters
u Gas Filters
u Pipe filters
Packing
