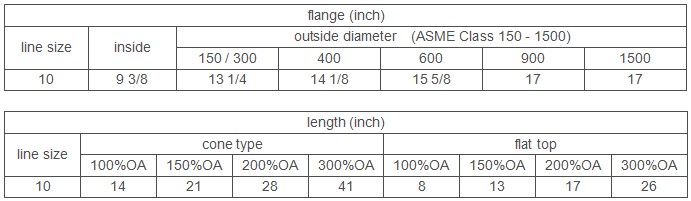

Line Size: DN10 inch
Inside Dia: 9 3/8inch
Outside Dia: 13 1/4inch,14 1/8inch,15 5/8inch,17inch
Type: cone,flat top
Length: 8inch-41inch
Material: Stainless steel mesh,steel mesh,expanded metal,perforated metal
Handle: none,1
Application: Pipe filtration
DN10 inch conical strainer
Standard
u Anping Web Wire Mesh Co.Ltd. Conical Strainer Process and Technical Parameters
Brief description
DN10 inch conical strainer is made of metal mesh by CNC punch pressing or cutting into sector pieces , after combination , welding flanges and handle, is a coarse filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and many models, can produce a variety of specifications of the conical strainer, uniform mesh , large filtration area , low resistance , renewable ( repeatedly) etc., it is widely used in oil, gas , water treatment and other fields .
Material
u Stainless steel mesh: 201, 202, 304, 304L, 316, 316L, 321, 430
u Steel mesh: Q195, Q235, Q275
u Expanded metal: standard diamond hole, flatten diamond hole
u Perforated metal : round hole
Type

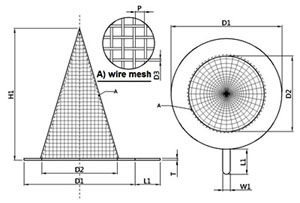

Cone type

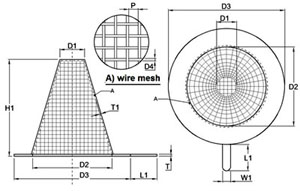

Flat top type
Note:
u D1,D2,D3 stand for diameter
u L1 stands for length
u T stands for thickness
u W1 stands for width
u OA stands for open area
Application
u Oil filters
u Water filters
u Gas Filters
u Heat treating
u Pipe filters
u Activated carbon filtration
Packing
