Line Size: DN36 inch
Inside Dia: 33inch

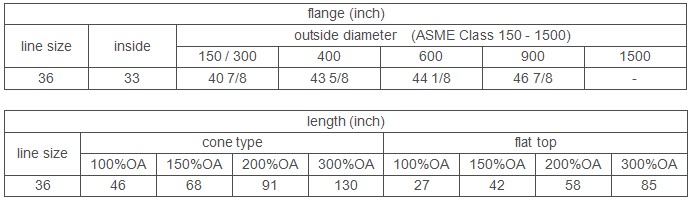

Outside Dia: 40 7/8inch,43 5/8inch,44 1/8inch,46 7/8inch
Type: cone,flat top
Length: 27inch-130inch
Material: Stainless steel mesh,steel mesh,expanded metal,perforated metal
Handle: none,1
Application: Pipe filtration
DN36 inch conical strainer
Standard
u Anping Web Wire Mesh Co.Ltd. Conical Strainer Process and Technical Parameters
Brief description
DN36 inch conical strainer is made of metal mesh by CNC punch pressing or cutting into sector pieces , after combination , welding flanges and handle, is a coarse filter element can be remove impurities in the medium operating equipment to work normally , to achieve a stable process . We have a complete metal mesh production line and many models, can produce a variety of specifications of the conical strainer, uniform mesh , large filtration area , low resistance , renewable ( repeatedly) etc., it is widely used in oil, gas , water treatment and other fields .
Material
u Stainless steel mesh: 201, 202, 304, 304L, 316, 316L, 321, 430
u Steel mesh: Q195, Q235, Q275
u Expanded metal: standard diamond hole, flatten diamond hole
u Perforated metal : round hole
Type

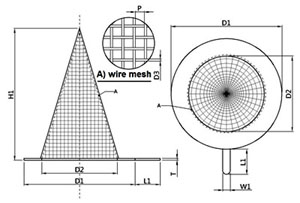

Cone type

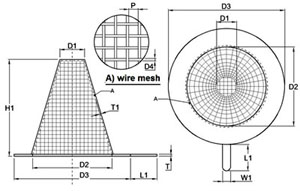

Flat top type
Note:
u D1,D2,D3 stand for diameter
u L1 stands for length
u T stands for thickness
u W1 stands for width
u OA stands for open area
Application
u Oil filters
u Water filters
u Gas Filters
u Pipe filters
u Water treatment
Packing
Conical strainer should be packed firmly and securely. When packing, conical strainer are appears in pieces.They are wrapped with plastic bags or plastic films and then be put into cartons.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
