Agricultural Sieve Bend Screen

Agricultural Sieve Bend Screen

Standard

JB/T 4265-1999

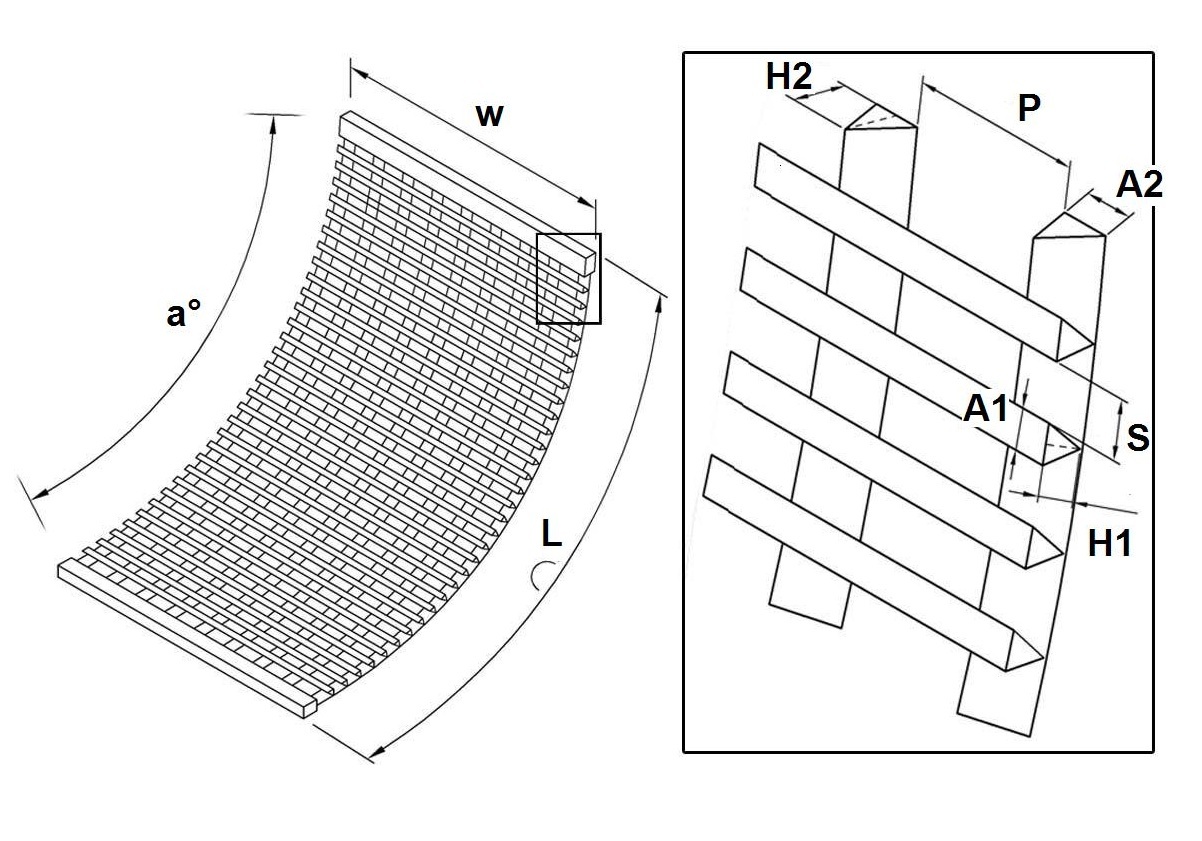

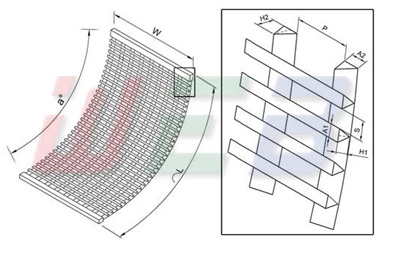

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Parameter

Brief Description of Agricultural Sieve Bend Screen

Agricultural sieve bend screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and radian processing. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration.On the sieve bend screen, sieve slot direction is perpendicular to the material direction.The screen has a simple and practical structure, reliable operation, good effect of dehydration,separating solids and liquids depending on centrifugal force and gravity.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for wedge wire tube.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

Agricultural Sieve Bend Screen

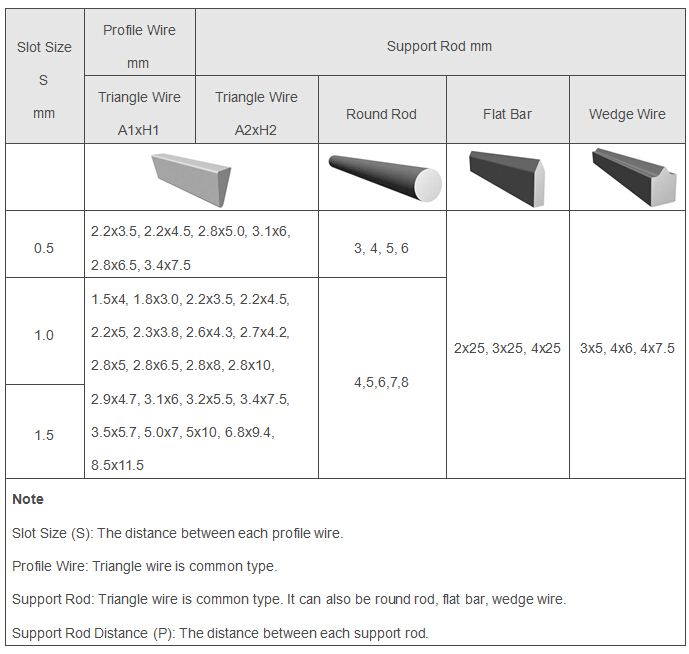

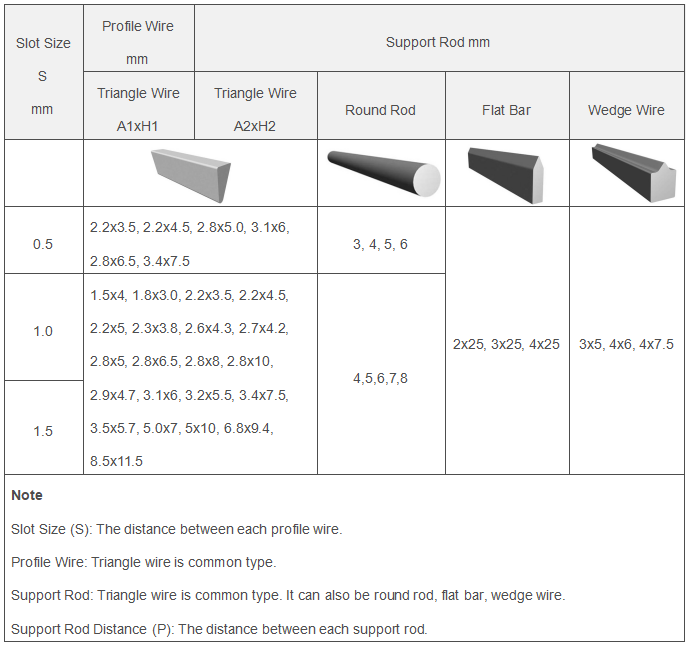

Generally the slot size of sieve bend screen is 0.5mm,1.0mm and 1.5mm for mining screen.

Other sizes are also accepted by customers’ request.

Sieve Bend Screen End Types

To accommodate various equipment designs, feed box configurations, and structural mounting requirements, our curved sieve bend screens (DSM screens) can be customized with multiple ending options and framing types, including but not limited to:

Standard Cut / Plain Ends

Flat Bar Framing (Side & End Bars)

Angle Iron / L-Profile Frames

Rubber Profile / Polyurethane Edges

Agricultural Sieve Bend Screen Application

Livestock Manure and Slurry Management:Manure Separation ,Slurry Dewatering,Feed Screening , Solids Recovery

Grain Processing and Starch Extraction:Starch & Gluten Separation,Wet Milling,Fiber Recovery , Pulp Dewatering

Fruit and Vegetable Processing:Debris & Peel Removal,Process Water Recycling

Sugar Extraction:Raw Juice Screening, Bagasse Filtration

Aquaculture and Fish Farming: Aquaculture Effluent Filtration, Recirculating Aquaculture Systems Pre-treatment

Packing

Sieve bend screen should be packed firmly and securely. When packing, sieve bend screen appears in panels. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
