Paper Sieve Bend Screen

Paper Making Sieve Bend Screen

Standard

JB/T 4265-1999

Anping Web Wire Mesh Co.,Ltd. Wedge Wire Screen Process and Parameter

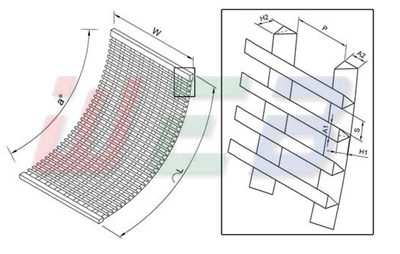

Brief Description of Paper Making Sieve Bend Screen

Paper making sieve bend screen is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods,then be made to panel screen through cutting and radian processing. Each profile wire and support rod is contacted by resistance welding. This screen is with features of firm in structure,good mechanical properties, high strength, rigidity and load capacity. For the section of profile wire is V shaped,the screen slot is narrow in the above and wide in the below,and thus be easy to leakage,wear and corrosion resistance, avoiding clogging and ensure smooth filtration.On the sieve bend screen, sieve slot direction is perpendicular to the material direction.The screen has a simple and practical structure, reliable operation, good effect of dehydration,separating solids and liquids depending on centrifugal force and gravity.

Material

Stainless Steel:304 304L 316 316L 321

Grade	EN Number	Key Characteristics & Applications
304	1.4301	non-magnetic stainless steel grade, basic stainless alloy commonly applied for wedge wire tube.
304L	1.4306	Low-carbon version of 304; superior weldability and resistance to intergranular corrosion.
316	1.4401	Marine-grade; enhanced resistance to chlorides and acids.
316L	1.4404	Low-carbon 316;the reduced carbon content for better secondary welding
321	1.4541	Titanium-stabilized; specifically designed for high-temperature service environments.

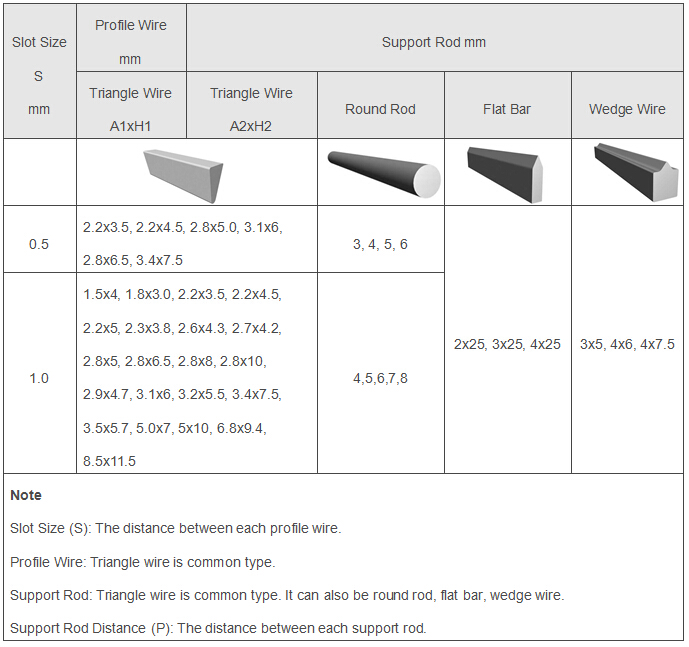

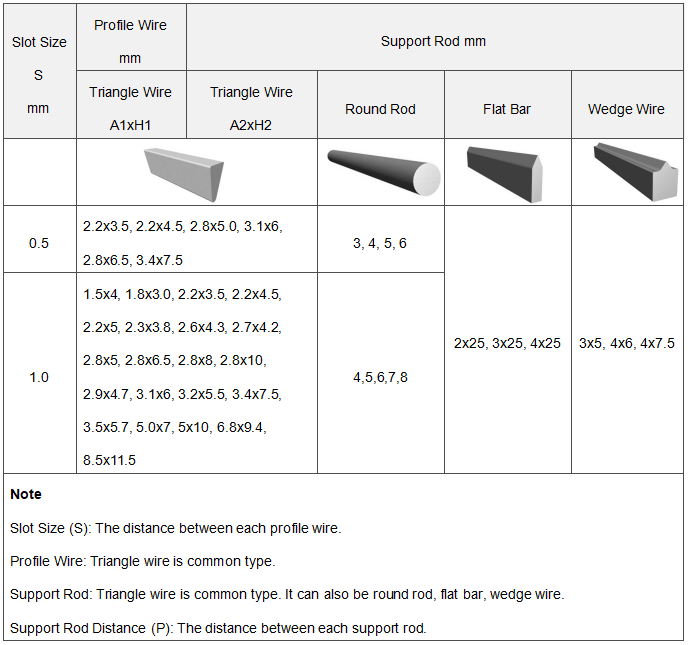

Paper Making Sieve Bend Screen Technical Parameter

Generally the slot size of sieve bend screen is 0.5mm and 1mm for paper making industry.

Other sizes are also accepted by customers’ request.

Sieve Bend Screen End Types

To accommodate various equipment designs, feed box configurations, and structural mounting requirements, our curved sieve bend screens (DSM screens) can be customized with multiple ending options and framing types, including but not limited to:

Standard Cut / Plain Ends

Flat Bar Framing (Side & End Bars)

Angle Iron / L-Profile Frames

Rubber Profile / Polyurethane Edges

Paper Making Sieve Bend Screen Application

White Water Filtration and Fiber Recovery:Cellulose Fiber Recovery and Stream Reclamation,Closed-Loop Water Conservation and Recycling

Pulp Thickening and Stock Preparation:Pulp Slurry Thickening ,Fiber Fractionation

Recycled Fiber and De-Inking Systems:Macro-Contaminant and "Stickies" Removal,Ink Particle Washing and Ash Reduction

Mill Effluent and Industrial Wastewater Treatment:Primary Clarifier Pre-Treatment,Total Suspended Solids Reduction & Downstream Equipment Protection

Packing

Sieve bend screen should be packed firmly and securely. When packing, sieve bend screen appears in panels. They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
